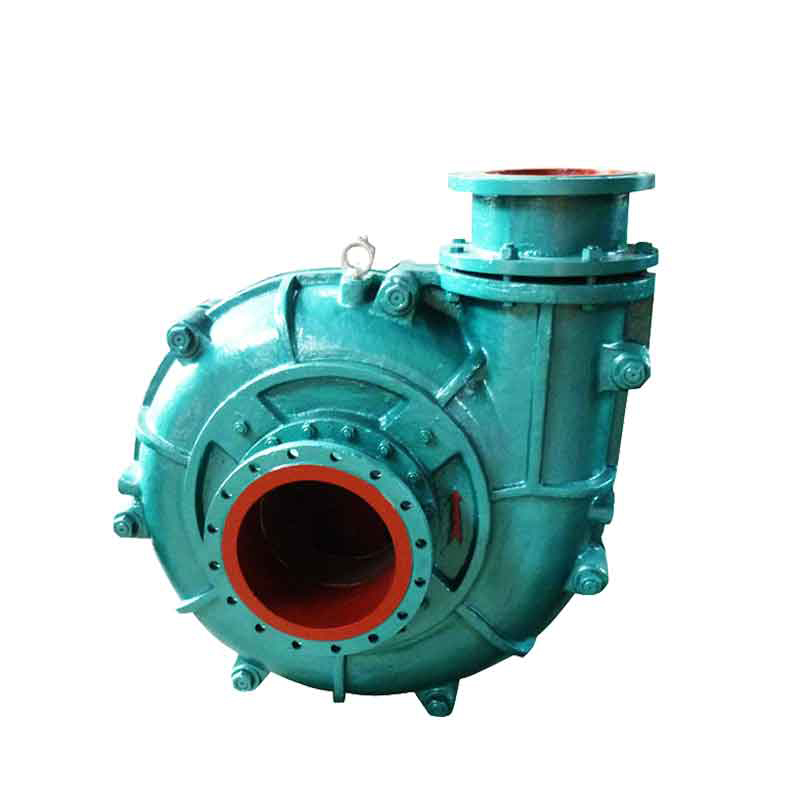

MZGB(P) type slurry pump

---

The product adopts a pump housing structure with double axial and vertical opening with hard alloy lining. Design of high head impeller and high efficiency with carbide impeller, wide flow path and good anti-clogging performance, with low NPSHr NPSHr. Horizontal components of open bearing, high capacity bearing design, bearing oil lubrication and configuration of two sets of bearing cooling system to ensure safe and reliable operation.

Characteristics of the structure of the MZGB (P) type slurry pump

Structure of the casing of the axial double pump, vertical, vertical, lined with carbide.

Horizontal components of open bearing, high capacity bearing design, bearing oil lubrication and configuration of two sets of bearing cooling system to ensure safe and reliable operation.

The space between the impeller and the protector can be adjusted to ensure efficient operation of the pump.

Sealed with packing, filled with impeller seal and mechanical seal of filter core for sealing to suit different conditions.

Pumps and units can be selected for direct transmission, V-belt drive, hydraulic coupling transmission and gearbox transmission.

The direction of pump output can be rotated in 8 angles to adapt to different field installation conditions.

Size of the model

Flow: 99.4-400m3 / h

Head: 36.4-90.1 meters

Greater efficiency: 62.1-76.2%

NPSH: 3.3-7.3m

Shaft power: 61.3-432.1KW

Impeller diameter: 645 mm

Discharge outlet diameter: 250 mm

Diameter of entrance: 300 mm

Speed: 740-980

Scope

It is suitable for transporting abrasives and corrosive slurry pumps. It can be widely used in metallurgy, mining, chemicals, coal, electricity, building materials and other departments, especially for the transmission of ash from power plants. It is the ideal pump to transport mud.

PRODUCT ADVANTAGES

Long-lasting parts

High efficiency, low power consumption

Easy to maintain

Low operating costs

High reliability

PRODUCT DESCRIPTION

The use of modern CAD design methods, excellent hydraulic performance, high efficiency, low wear rate, wide flow channels, good anti-clogging performance, superior cavitation performance.

The combined sealing seal of the impeller and the mechanical seal are used to ensure that the Pulp does not leak.

The reliability design ensures a significant increase in the mean time between faults (MTBF) of the machine.

The use of fine oil to measure the bearing, a reasonable set of lubrication and cooling systems, to ensure that the bearings run at low temperatures.

The flow element is made of a special material that provides good wear and corrosion resistance.

Multiple stages can be used in series within the allowable pressure range, which allows a maximum working pressure of 3.6 MPa. Sludge pump of the ZGB series of the same structure.
